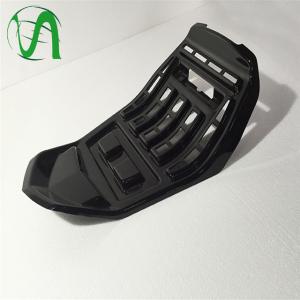

Thermoforming Plastic Vacuum Formed Parts With Aluminum / Copper Molding

Shenzhen bosen Plastic Products Co. , Ltd.

Thermoforming Plastic Vacuum Formed Parts With Aluminum / Copper Molding

  • 1
  • 2

Brand Name : Bosen

Model Number : BS20160109

Certification : ISO

Place of Origin : CHINA

MOQ : 100

Price : $2.00~$3.00 per piece

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000pcs/week

Delivery Time : 15~25 days

Packaging Details : Standard packing

Name : Shenzhen factory produce ABS vacuum forming plastic parts thermoforming plastic

Material : ABS, PS, PET, PVC, PP, PMMA, PETG, PC

Thickness available : 0.2~8mm

Color : Custom color

Design : OEM design

Drawing format : AI, STP, IGS, DWG

Mold type : Aluminum mold

Surface treatment : Screen printing, Spray painting, offset printing, chrome plating

Process : Vacuum forming

Contact Now

Thermoforming Plastic Vacuum Formed Parts With Aluminum / Copper Molding

Please kindly note all below item are custom design item according to customer needs, please do not buy directly.

Product name Shenzhen factory produce ABS vacuum forming plastic parts thermoforming plastic
Material available ABS,PS,PP,PVC,PET,PET-G,PMMA,PC,HDPE,etc
Color Custom color
Material thickness The material thickness can start from 0.3mm up to 10mm.
Surface treatments silk screen, spray painting, offset printing, chrome plating
Mold material Aluminum mold, copper mold, timber mold, plaster mold according to the product design
Size The maximum size can reach 2200x1500 according to customer design

Heavy gauge vacuum forming

Vacuum forming a simple process which you may already be familiar with, where a hot sheet is stretched over a male mold, and vacuum is applied between the sheet and the mold, pulling the sheet tight to the mold. Once it cools, the sheet takes on the shape of the tool. With our 3-dimensional trimming equipment, we can then trim out the finished part with a high degree of accuracy and repeatability. There are an infinite number of applications of this process.

Thin gauge thermoforming

Thin Gauge thermoforming is a process that converts a flat sheet of plastic into a functional form usually used in packaging. Materials typically run between .010″ to .055″ thick. The most common uses are for food, medical, and retail packaging. Universal Plastics has built thin gauge thermo forming expertise throughout the years and understands how to successfully deliver packaging products designed for industries with stringent requirements on quality like food and medical.

Pre-printed/Distortion forming

Distortion printing is the process of printing a distorted version of an image onto a sheet of plastic and systematically vacuum forming the sheet on a mold so that specific areas of the printed image appear in corresponding areas of the resulting three-dimensional large part. Bosen plastic utilizes the screen printed plastic sheets in conjunction with vacuum thermoforming expertise to create a molded part containing the proper image displayed on the final product

DISTORTION PRINTING – NEW TECHNIQUES WITH PROVEN TECHNOLOGIES

Vacuum forming is not new industry, display manufacturers have been using the technology for many years to manufacture lightweight original retail displays.

Vacuum forming is the process of moulding plastic material over a relatively inexpensive mould to obtain various shapes that would otherwise require expensive fabrication, which would be cost prohibitive for multiple quantities and not as consistent in quality.

What's new is the process is applying distortion printing. Using software tools that distort the image so when it is vacuum formed over a particular shape it looks in perspective, just like the logos on football filed. The 3 dimension is further enhanced with our 5 axis routing machine allowing complex shapes to be cut.

Distortion printing is the process of printing a distorted version of an image onto a sheet of plastic and systematically vacuum forming the sheet on a mold so that specific areas of the printed image appear in corresponding areas of the resulting three-dimensional finished part. At Bosen plastic Co.,Ltd we are experts in the process, which allows us to deliver the quality and detail in our products that is expected in the process of distortion printing to shine through every piece we manufacture. The overall process of distortion printing at BOSEN is performed with control, due to the precise computer software, and with increased speed and repetition. Some key advantages that make distortion printing a top choice in developing are: design innovation which leads to improved branding, higher consumer awareness for our clients, and accuracy in the automated distortion process that helps to eliminate the expenditures associated with previous trial and error procedures.

Custom design display project
